ETPM-E12

12.1" Stainless Steel Touch Display Monitor

Features

  • 12.1" TFT-LCD True-Flat Design

  • Resistive / Capacitive Touch

  • Stainless Steel w/ Full IP67 rating

  • Supports VESA & Panel Mount

  • Tempered Glass Integrated (opt)

  • 1000nits High Brightness (opt)

New

Display Monitors >> ETPM-E12


System

Operating System Support

Touch Screen

Display

Power

Mechanical

Environment

VGA: 1 x VGA

USB: 1 x USB

HDMI: 1 x HDMI

OSD Control: 5 Keys on Rear

WiFi: None

LCD Size: 12.1" TFT-LCD

Max. Resolution: 1024 x 768

Max. Color: 16.7M

Luminance (cd/m²): 350

View angle (H°/V°): 160°/160°

Backlight lifetime (hrs): 40,000 hrs

High Brightness: 1000nits (opt.)

Touch Type: Resistive / Capacitive

Interface: USB

Light Transmission (%): 80

Power input: DC 12~36V

Consumption: <35W

Construction: Stainless Steel

IP Rating: Full IP67

Mounting: Panel Mount / Vesa Mount

Color: Silver

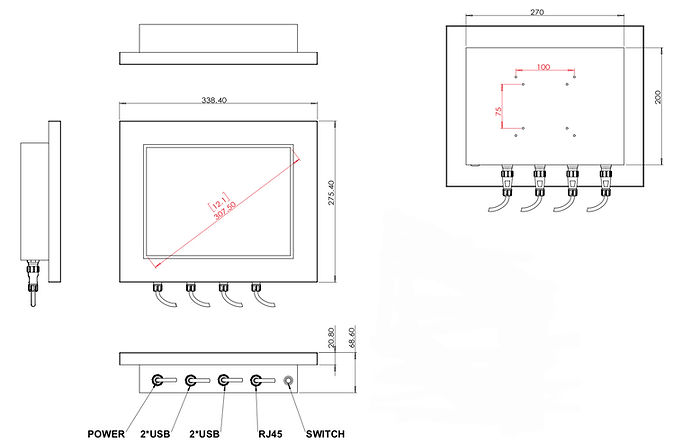

Dimension (mm): 338 x 275.4 x 68.6

Net Weight (kgs): 6

Operating Temperature: -20~70ºC

Storage Temperature: -20º~70ºC

Storage Humidity: 5~90%@ 40ºC

                               non-condensing

Certification: CE/FCC Class A

Microsoft Windows 10 Pro / Linux

Order Options

Brightness: 1000 nits

Touch: USB or HMDI (default)

Mount: YOKE (optional)
